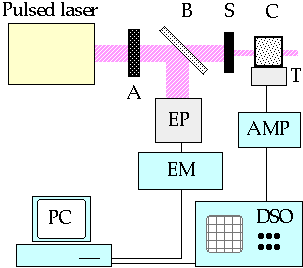

Photoacoustic setup
Photoexcitation is achieved by the third harmonic of a Q-switched Nd:YAG
laser (Surelite II - 10, Continuum). A small fraction of the output is
diverted by a beam splitter and attenuated by a set of neutral density
filters, so that the energy of the pulses on the sample can be adjusted
between 3 and 30 mJ. No significant changes
with laser fluence were observed in any of the measured parameters, except
that the S/N ratio degraded at the lower energies. The unfocussed beam
was shaped by means of a slit (280 mm width)
positioned in front of the quartz cuvette. Part of the energy was splitted
to an energy meter (Laser Precision RJ-7620) equipped with a pyroelectric
energy probe (Laser Precision RJp-765) for normalization purposes. The
pressure wave induced in solution was detected by a PZT piezoelectric transducer
(Panametrics V-103). The signal was then amplified (60 db) and recorded
by a digitizing oscilloscope (LeCroy 9450A) operated at 2.5 ns/channel.
Typically 4000 points were acquired, with a time window of 10 ms.
The quartz cuvette was placed inside a temperature controlled sample holder
(Quantum Northwest, Inc. TASC 300) which assured a temperature stability
of better than 0.02 °C inside the solution. The sample holder allows
magnetic stirring of the sample and dry gas purge of the atmosphere, in
order to prevent condensation at low temperatures. The N2 purging
mechanism also minimizes CO2 solubilization effects during the
experiment. Data acquisition and analysis were performed by means of dedicated
software (Sound Acquisition and Sound Analysis, Quantum Northwest, Inc.).
|
