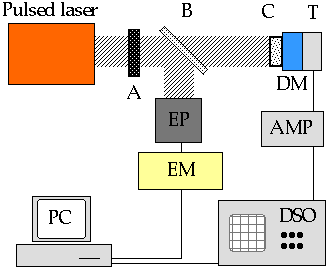

Figure 2

Schematic description of the PA setup in a right angle detection geometry

A variable attenuator
B beam splitter
S slit (or pin hole)
C cuvette
DM dichroic mirror
T transducer
EP energy probe
EM energy meter
DSO Digital sampling oscilloscope
PC computer
