1.1 The apparatus
Generally the right angle PA setup is used
for studies with liquid samples, in which the acoustic waves are detected
at right angle of the pump beam. The pressure transducer is clamped to
the side of the quartz cuvette and acoustic impedance is partly matched
by means of a thin layer of either vacuum grease or silicon oil.
An alternative setup is the front-face detection
geometry, where the transducer is clamped behind the cuvette, and a
dichroic mirror is placed in between cuvette and transducer, in order to
reduce the background signal coming from the absorption of the laser pulses
at the transducer surface.
Lasers
In the photoacoustic experiments, photoexcitation is generally achieved
by nanosecond pulsed lasers, although a few applications of picosecond
lasers have been also reported.
The laser pulse energy on the sample is usually in the 1-100 mJ
range for right angle detection, but can be higher for the front-face geometry,
since in this case the beam size is larger and the photon density is lower.
In both cases, care must be taken in checking the linearity with laser
fluence of the detection system and the photochemical system under
examination (vide infra). Beam shape and
pointing stability, and pulse-to-pulse energy stability are key features
for lasers used in time resolved PA applications. Although the energy used
in the right angle PA experiments is in the mJ
range, it is very useful to have mJ pulses from the laser, so that beam
shaping can be done without focussing, by simply skimming the incident
light in passing through either a pin hole or a slit (vide
infra).
Laser pulse energy normalization
The absolute value and the fluctuation of the laser pulse energy incident
on the sample is monitored by splitting part of the beam to an energy meter.
In the right angle detection, this is generally done before shaping the
unfocussed beam with a slit or a pin hole, which are positioned in front
of the cuvette. The absolute value of the energy incident on the
cuvette can be determined by measuring the ratio between the energy of
the split beam and the unsplit part of it (it is important to check this
last value before and after the cuvette and take the average value to compensate
for reflections at cuvette surfaces). Monitoring the fluctuations in the
energy of the split beam allows the monitoring of the fluctuations in energy
of the unsplit beam. Measured signals must be normalized (divided) by the
actual energy of the laser pulses during acquisitions.
It is not strictly necessary to have absolute energy values (in J)
since the normalization is a relative scaling process. However, it
is highly recommended that the absolute value of the laser pulse energy
used in the experiment is known, in order to have a better control on the
photophysical and photochemical processes.
Shaping of the beam
In the right angle geometry, the laser beam is generally not focussed

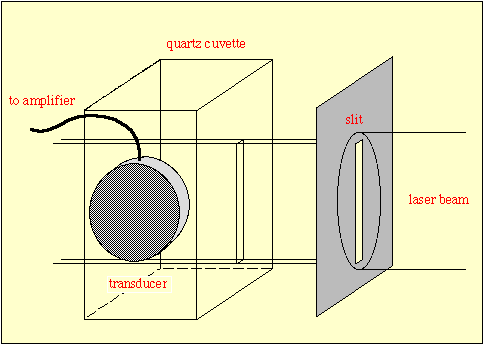

and is shaped by means of either a pin hole or a slit (see a
closeup ) positioned in front of the quartz cuvette. Mild focussing,
either with spherical or cylindrical lenses, can also be used to shape
the beam, expecially when working with low power lasers as, e.g., nitrogen-pumped
dye lasers. Care must be taken, however, not to use lenses with short
focal length and, in any case, not to have the focus inside the cuvette,
in order to avoid fluence gradients that may lead to nonlinearities.
On the contrary, in front-face detection (see a
closeup) the laser beam is generally shaped so that the beam "fills"
the cuvette, and in this case laser pointing stability is less critical.
Laser fluence is greatly reduced by adopting this geometry.
Ultrasonic detectors
and signal conditioning
The pressure wave induced in solution is detected by sensitive piezoelectric
transducers. Piezoelectric transducers include ceramic transducers
as the popular Lead Zirconate Titanate (PZT) transducers (also used as
accelerometers), which are essentially differential transducers, and organic
films as polyvinylidene difluoride (PVDF), which are rather broadband in
nature. These transducers are characterized by very high output impedance
(> 100 MW ) which requires adequate signal conditioning.
Commercially available transducers have resonance frequencies in the 0.1-100
MHz range (Panametrics), DC-20kHz
(PCB). After impedance adapting, the 50
W load can be fed into high gain amplifiers
(at least 100 X, bandwidth of at least 10 MHz). Commercial tranducers
can be generally purchased with the appropriate signal conditioning electronics.
Digital sampling oscilloscopes
Digital sampling oscilloscopes (DSO) are generally used to digitize
the signals. Early applications included boxcar integrators and transient
recorders, which have by now been superseded by the outpassing performances
of the new DSO. Typical figures include 50 W
DC input coupling, 1-5 mV vertical sensitivity, 8 bit single shot vertical
resolution of the ADC converter, averaging capability with 16 or 32 bit
processors, > 100 MHz bandwidth at the maximum amplification of the front-end
amplifier, > 100 MS/s maximum sampling rate.
Generally, in PA applications it is not necessary to use DSO with deep
memories, since the time window digitized in the experiment is about 10
ms. At a sampling rate of 400 MS/s this
would require 4,000 data points.
It is extremely useful to have remote control on the scope, for instance
via a GPIB interface, in order to transfer the data to a computer for the
following data analysis.
Modern DSO are also equipped with hard and/or floppy disks which can
be used for temporary data storage.
Commonly used oscilloscopes include LeCroy,
Tektronix and HewlettPackard.
Sample holder
The sample holder is a very critical component of the PA setup.
The most important feature of the sample holder is thermal stability
and homogeneity. The temperature of the sample in the experiment
determines the values of the compressibility, the thermal expansion coefficient
and the speed of sound, parameters that appear in the expressions
describing the PA signal. Uncontrolled temperature gradients inside the
sample lead to PA signal generation which is generally non reproducible
from sample to sample and render both the signal amplitude and time profile
meaningless. Temperature control inside the cuvette for room temperature
studies with aqueous or organic solutions must provide at least 0.2 °C
stability; requirements are higher (0.02 °C stability) for lower temperature
studies of aqueous solutions, because of the strong temperature
dependence of the thermoelastic parameters.
The quartz cuvette and the transducer are placed inside a metal block
which is thermostated by means of a water circulating bath. Since the sample
holder is frequently kept for long time at temperatures below room temperature,
care must be taken in insulating the sample holder by means of suitable
material. Moreover, dry gas must be flown across the cuvette walls
in order to prevent moisture condensation which may impair the possibility
of performing data analysis of experimental waveforms.
Recently, thermoelectric coolers have been introduced to control the
temperature inside the metal black housing the sample cuvette. In
our laboratory we have both a thermostated sample holder using a water
circulating bath and a recently implemented temperature controlled
sample holder from Quantum Northwest, Inc.
(model TASC 300) which
assures a temperature stability of better than 0.02 °C inside the solution.
The sample holder allows magnetic stirring of the solution inside the cuvette
and dry gas purge of the atmosphere, in order to prevent condensation at
low temperatures. In experiments where the atmosphere must be carefully
controlled, it is highly recommended that gas-tight quartz cuvettes are
used.
Linearity checks
Linearity with laser fluence must be checked for every sample under
investigation. Checks must be performed at two levels.
